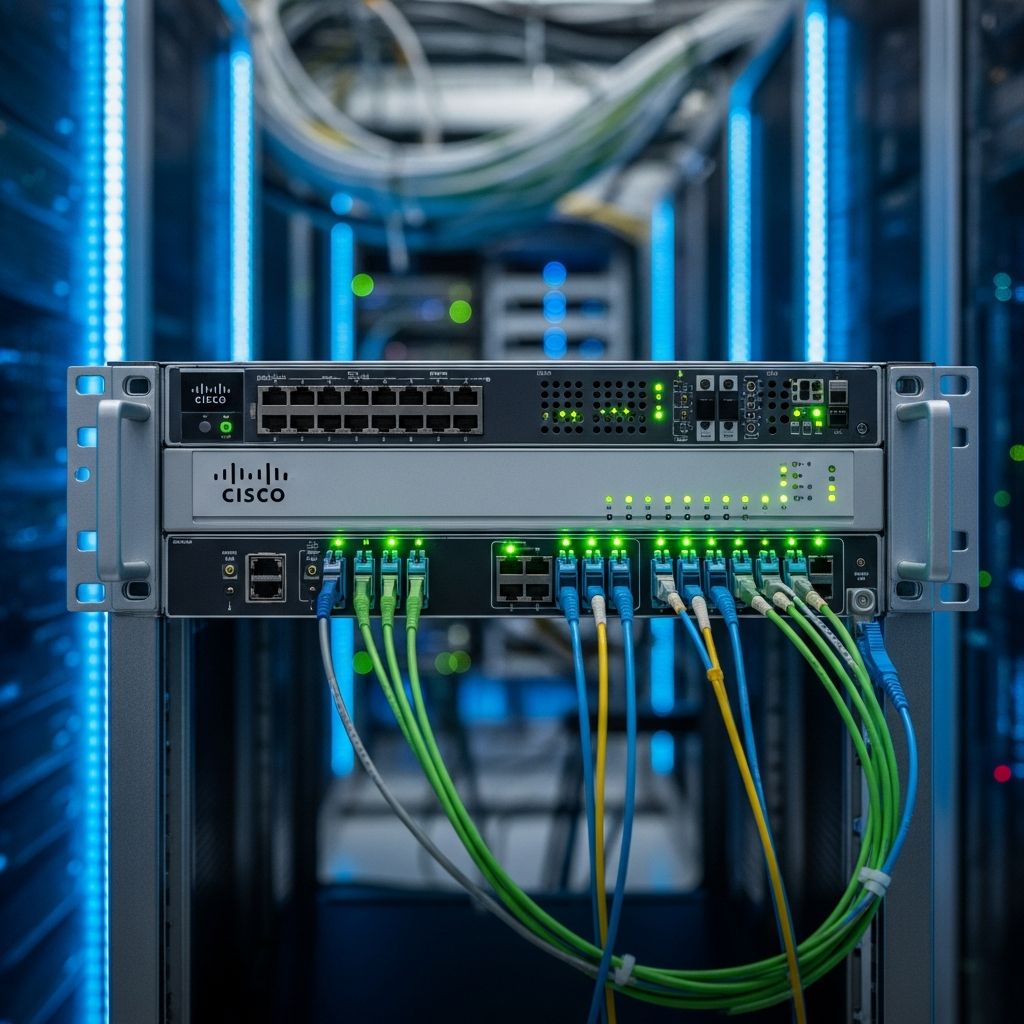

Cisco NCS 1000 Optical Systems Review
Explore the capabilities, strengths, and real-world performance of Cisco's high-capacity optical transport platform for modern networks.
Cisco’s Network Convergence System (NCS) 1000 series stands out as a powerhouse in optical transport technology, tailored for the demands of contemporary data infrastructures. This platform addresses the surging needs for high-bandwidth connectivity in data centers and metropolitan areas, leveraging dense wavelength-division multiplexing (DWDM) to deliver terabit-scale throughput over vast distances. As networks evolve to support cloud-scale operations and digitization, the NCS 1000 provides a compact, efficient solution that balances performance, scalability, and operational simplicity.
Core Architecture and Design Principles
At its heart, the NCS 1000 series embodies Cisco’s vision for converged networking. The NCS 1002 model, for instance, packs 2 Tb/s of bidirectional capacity into a mere two rack units, utilizing just eight wavelengths. This density is achieved through innovative mechanical designs and coherent optics, including 250G DWDM line rates with CFP2 pluggables. By decoupling coherent DSP from optics, the system achieves unprecedented scale and efficiency, making it ideal for interconnecting data centers separated by thousands of kilometers.
The platform’s modular IOS XR operating system further enhances its appeal, offering software extensibility, automation, and granular visibility. Features like LLDP snooping and locator beacons streamline data center deployments, while resiliency mechanisms protect against controller failures. These elements combine to create a system that not only handles immense traffic loads but also simplifies management in dynamic environments.
Primary Applications in Modern Networks
The NCS 1000 excels in several key scenarios. In data center interconnect (DCI) setups, it enables low-latency, high-capacity links that support the explosion of cloud workloads. Metro networks benefit from its ability to aggregate traffic efficiently, providing any-to-any connectivity that surpasses legacy TDM architectures in cost and flexibility.
- Data Center Interconnects: Seamlessly links multiple facilities with minimal footprint, supporting 100GE and 400GE client rates alongside ZR regeneration for extended reach.
- Metro Aggregation: Handles dense traffic from enterprise edges to core, with circuit emulation for versatile service delivery.
- Service Provider Deployments: Scales web-scale operations with automation and programmability for rapid provisioning.
Beyond these, the system’s support for Raman amplification and OSC (Optical Supervisory Channel) extends its utility in long-haul scenarios, ensuring signal integrity across challenging fiber paths.
Advanced Software Reliability Enhancements
Recent IOS XR releases, such as version 26.1.1, introduce critical upgrades that bolster the NCS 1000’s robustness. Auto firmware support on trunk optics automates upgrades for pluggables like NCS1K4-QXP-K9 and NCS1K14-EDFA2, locking line cards during the process to maintain integrity. Monitoring via show hw-module fpd commands and logs ensures transparency.
Security receives a major boost with OTNSec encryption on 2.4TA line cards, employing AES256 across ODU-FLEX controllers with CIM8-C-K9 modules. This fortifies optical transports against interception, vital for sensitive data flows. Span loss monitoring now differentiates C-band and OSC values, with configurable deviation thresholds triggering precise alarms—essential for Raman and non-Raman nodes alike.
| Feature | Description | Supported Cards | Benefits |
|---|---|---|---|
| Auto Firmware Upgrades | Parallel upgrades during boot | NCS1K4-QXP-K9, NCS1K14-2.4T-K9 | Reduced downtime, simplified maintenance |
| OTNSec Encryption | AES256 on trunk rates | NCS1K14-2.4T-A-K9 | Enhanced data security |
| Bidirectional OTDR | Rx/Tx autoscan with negotiation | All controllers | Improved fault isolation |
Operational Efficiency and Automation Tools
Cisco prioritizes ease of operations in the NCS 1000. Bidirectional OTDR autoscan now runs in both directions without collisions, incorporating peer negotiation to avoid conflicts—use the force option judiciously for overrides. Automatic Laser Shutdown (ALS) improvements detect fiber cuts via Ethernet LOS, FEFI, and C-band signals, safely powering down transmitters and restoring OSC communication swiftly.
The Card Configuration Wizard expands options, allowing REGEN mode on QXP cards with explicit 100GE/400GE client rates. These tools collectively reduce manual interventions, enabling operators to focus on strategic tasks amid growing network complexity.
Performance Metrics and Real-World Benchmarks
In practice, the NCS 1000 delivers on its promises. Users report terabit-per-RU densities that cut power and space costs dramatically compared to competitors. For example, its 96x250G scaling supports hyperscale demands, while IOS XR’s modularity ensures seamless upgrades without service disruptions.
Key metrics include:
- Capacity: Up to 2 Tb/s duplex per 2RU
- Reach: Thousands of km with coherent optics
- Latency: Optimized for DCI with minimal jitter
- Efficiency: 1 Tb/RU industry benchmark
These figures position it as a leader in cost-efficient, high-speed optical transport.
Deployment Considerations and Best Practices
Successful NCS 1000 rollouts hinge on proper planning. Start with IOS XR compatibility checks, especially for new pluggables. Leverage the system’s automation for firmware and OTDR tasks to minimize errors. In multi-vendor environments, ensure OSC and span loss configs align to avoid alarms.
Common pitfalls include overlooking negotiation in OTDR scans or misconfiguring ALS thresholds—always validate with Cisco’s release notes. Integration with Cisco Catalyst Center or Nexus switches enhances overall orchestration, as seen in comparative deployments.
User Perspectives and Comparative Analysis
Feedback from network professionals underscores the platform’s strengths in speed and reliability. Data center teams praise its UCS-B compatibility and direct storage links, while service providers value cost savings over TDM. Against rivals like generic DWDM systems, the NCS 1000 shines in programmability and Cisco ecosystem synergy.
In comparisons with Nexus series, it offers superior optical-layer capabilities, though Nexus edges in pure Layer 2/3 switching. For optical-heavy roles, NCS 1000 is unmatched.
Future-Proofing with Cisco Innovations
Looking ahead, the NCS 1000 aligns with Cisco’s digitization roadmap, incorporating IOS XR evolutions for AI-driven operations. Ongoing enhancements in encryption, diagnostics, and capacity promise sustained relevance through 2026 and beyond.
Frequently Asked Questions (FAQs)
What is the maximum capacity of NCS 1002?
2 Tb/s bidirectional in 2RU using eight wavelengths.
Does it support encryption?
Yes, AES256 OTNSec on select line cards for secure transport.
How does OTDR work in NCS 1000?
Bidirectional autoscan with peer negotiation prevents conflicts and enhances diagnostics.
Is it suitable for long-haul links?
Absolutely, with Raman support and extended reach optics up to thousands of km.
What OS powers the system?
Cisco IOS XR, offering modularity and automation.
